Sensor: NSC1902T-SI
Material: InGaAs
Resolution: 640×512
Pixel pitch: 15μm
Spectral response: 0.9 to 1.7μm
Dual response: Linear, 3 gain levels
Modes: IWR/ITR, CDS, ROI
QE: >85% (90% typical)
Output: USB3.0, CameraLink
Frame rate: Up to 230fps full frame
Partial Reading Mode: Down to 16×16
Exposure time: 10μs to 112sec
Sensor noise: <40e-
Dark current value: <1500 e-/pixels/s @-20°C
Operating mode: TEC2 + Fan air-cooled
Trigger: IN/OUT (LVTTL), Selectable delay
Power Range: 12V
Dimension: 46x57x112mm
Mount: C-Mount native
Weight: < 215g
ADC: 14 bits
Operating Temp: -40°C to +65°C
Interfaces available:
USB3.0
CameraLink
Technical Specifications available in the datasheet
Applications
With TEC2 & air-cooled operating mode, the HiPe SenS is designed for low light, long exposure time applications (from 10us to 112s). It can operate with an FPA temperature as low as -20°C only with internal air cooling. Also, the camera is easy for integration to microscope benches or any other optical devices, thanks to the small form factor.
Medical & Life science
Semiconductor inspection
Security & Surveillance…

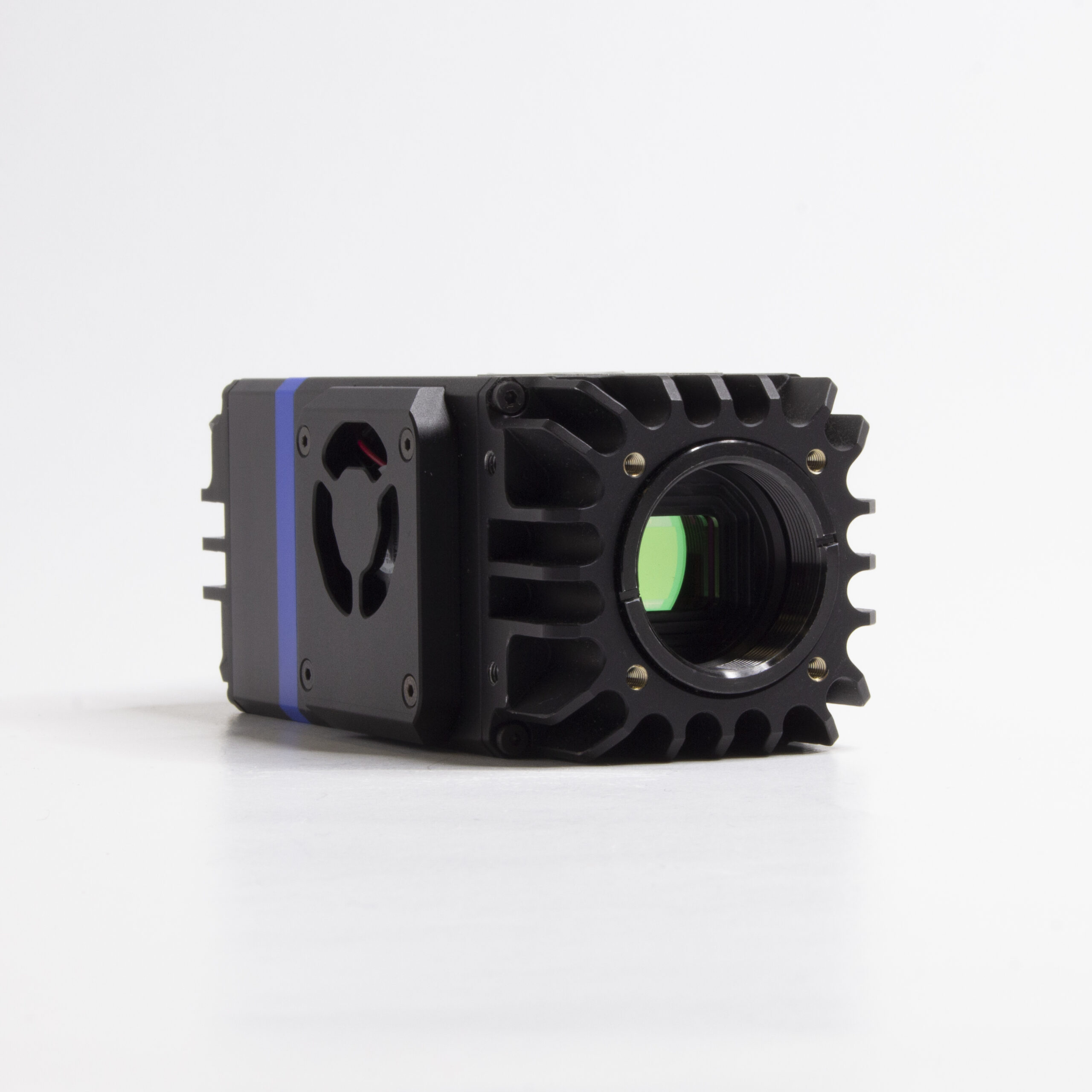

HiPe SenS 640
High-Performance Air-Cooled SWIR camera
Low Dark current for Long exposure applications
VGA resolution – 640x512px @15µm pixel pitch
USB 3.0 & CameraLink interface
TEC2 & Fan Air-cooled
Bad Pixels Replacement and Non-Uniformity Correction (NUC)
